GV Series Stainless Steel Rapid Drain Trough

Stainless steel trough with rapid draining system.

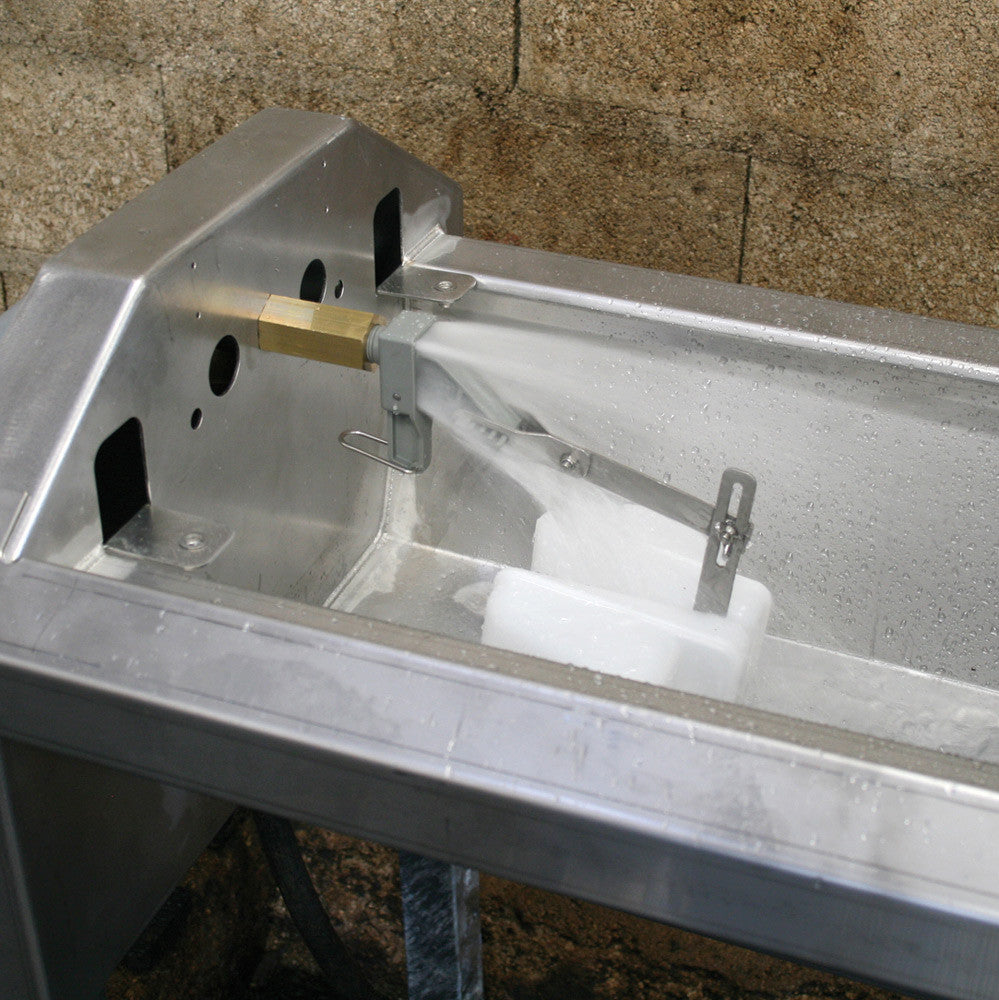

• 72 l./mn. valve (measured flow rate at 3 bars) with water shut off pin. ¾” swivel fitting with 2 entries: can be connected to a PROFLOW II or SPEED-FLOW circulation pump without extra accessories.
• Stainless steel troughs, linking sturdiness and food safety. With slanted bottom for easier cleaning and specially folded non-spill edge to minimize water loss and avoid splashing. The valve is protected against the animals by an insulating double-walled HD-Polyethylen cover also serving as a first protection from frost. A second HDPE side plate avoids all contact between the animals and the water supply. Its insulating capacity protecting it from frost.

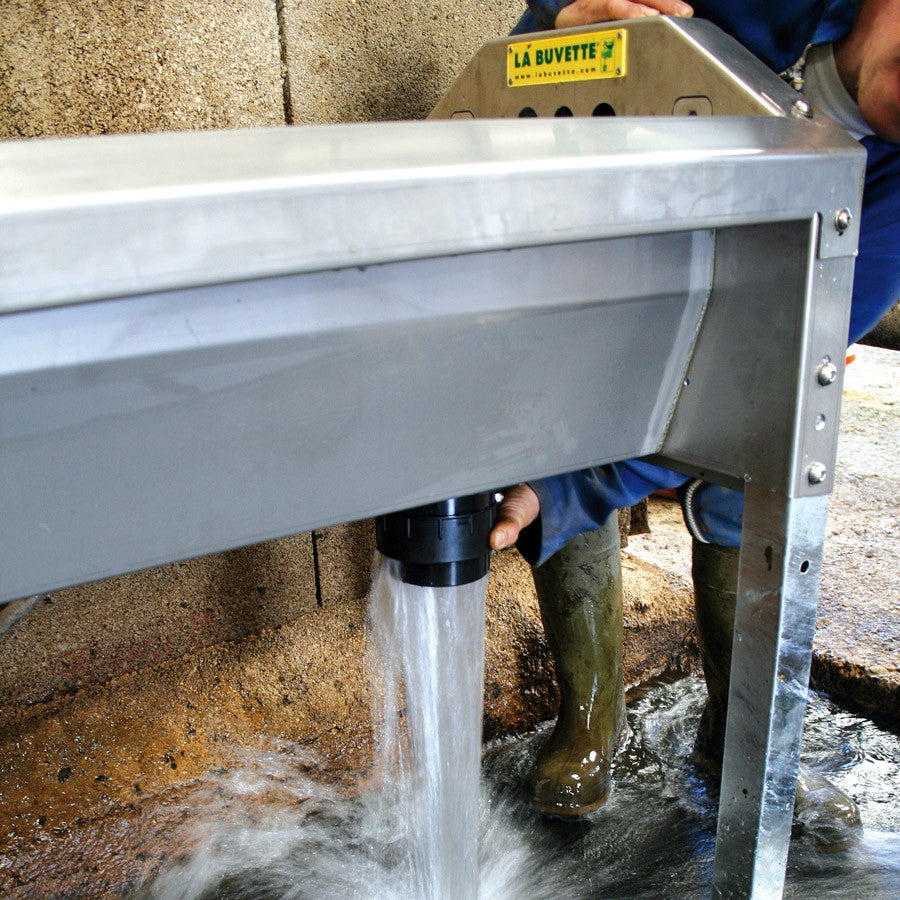

• "Dry hands" draining system with plug Ø 100 mm: accessible from below without having to put your hands in the trough and equipped with a simple opening/closing system that can be locked without the use of tools. The rubber plug is not affected by frost.

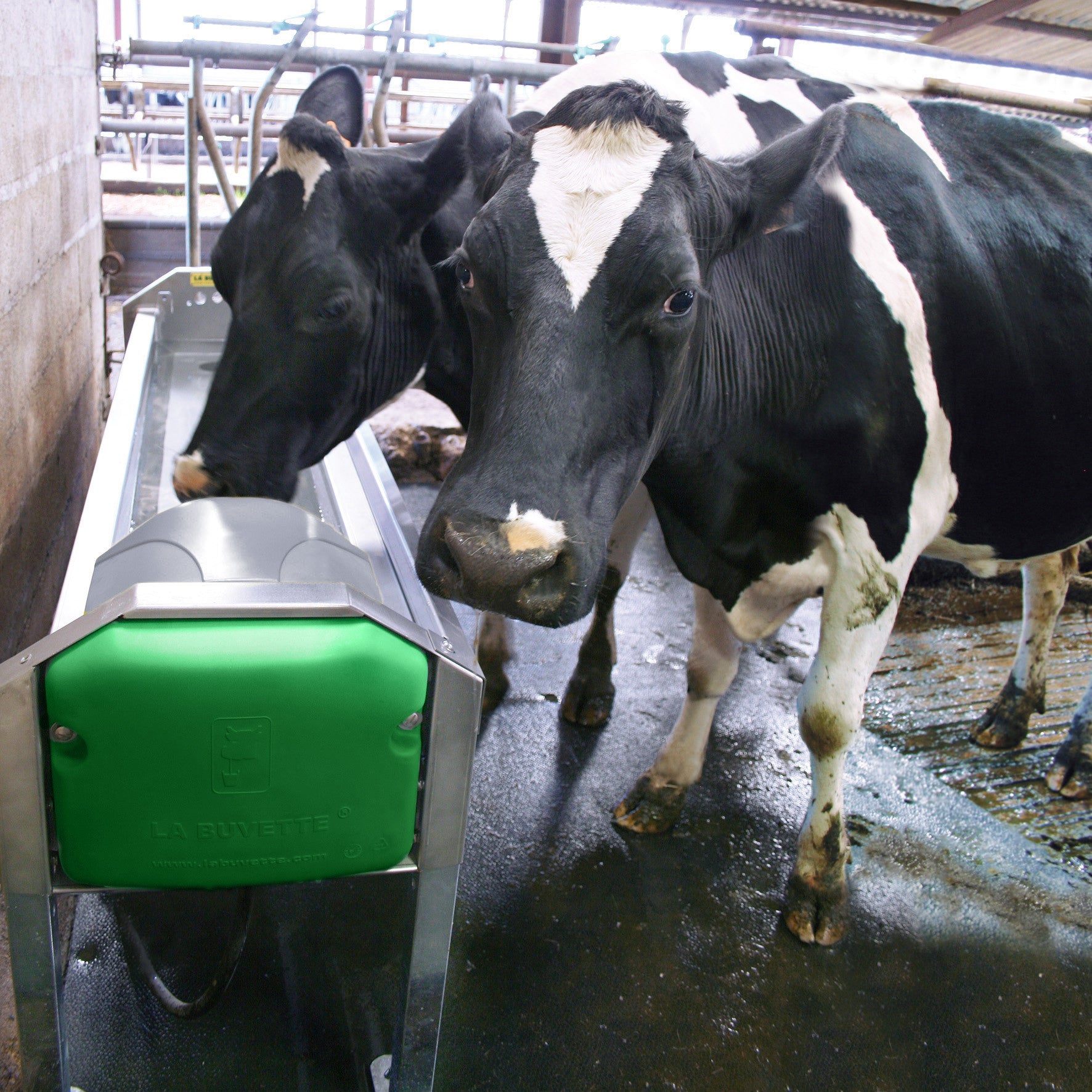

The GV250 (2134mm long) is suitable for 4 cows, while the GV300 (3000mm long) suits 5 cows.

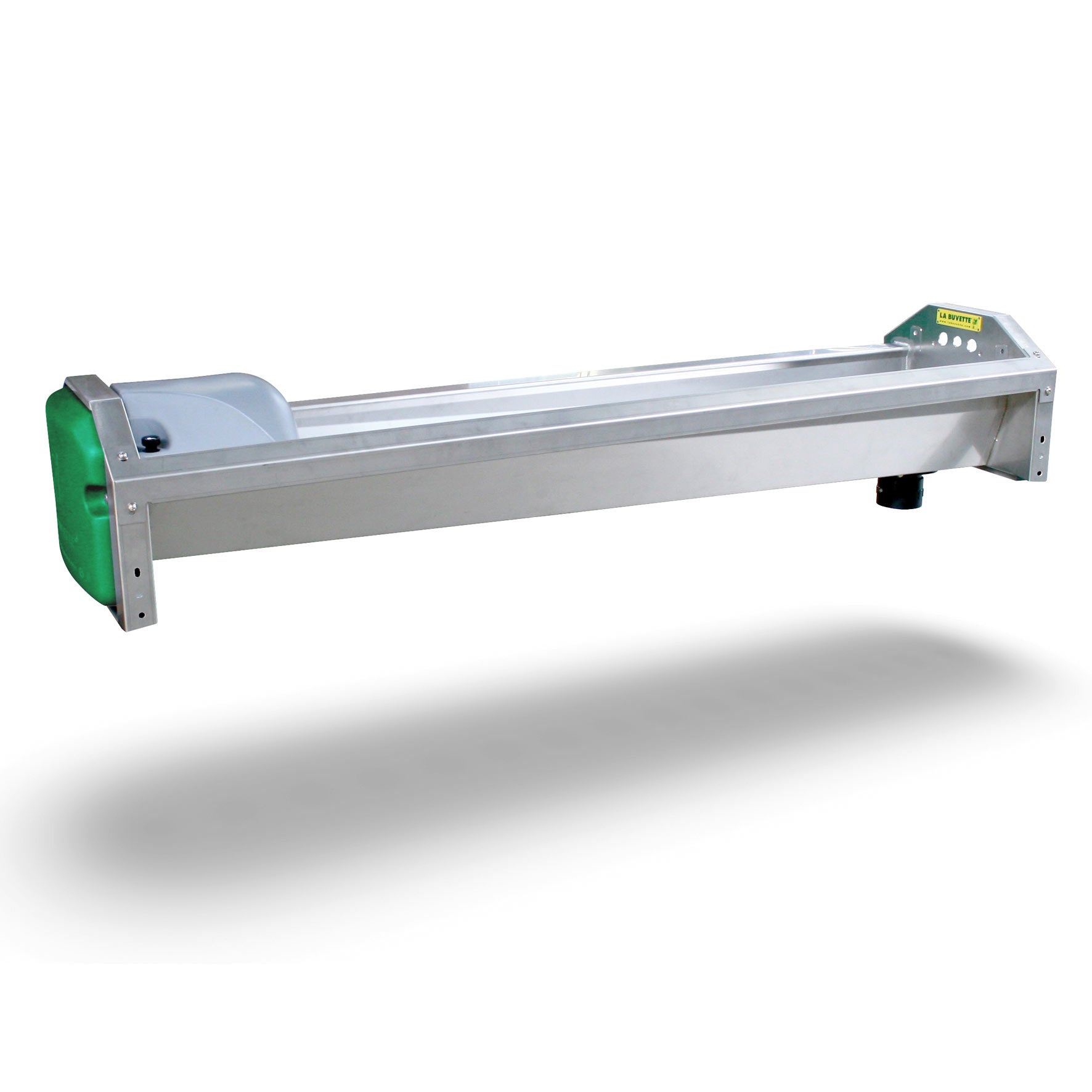

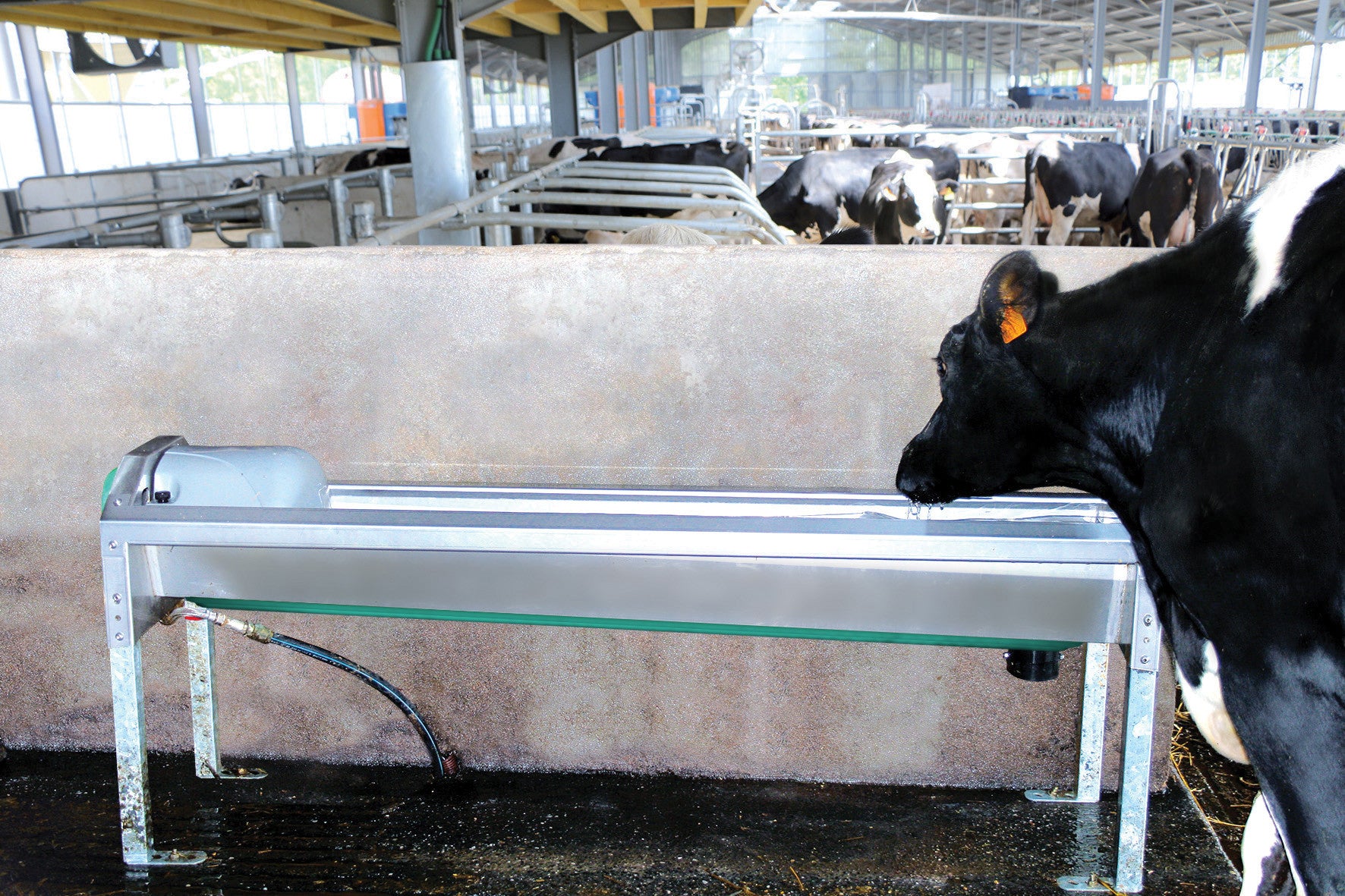

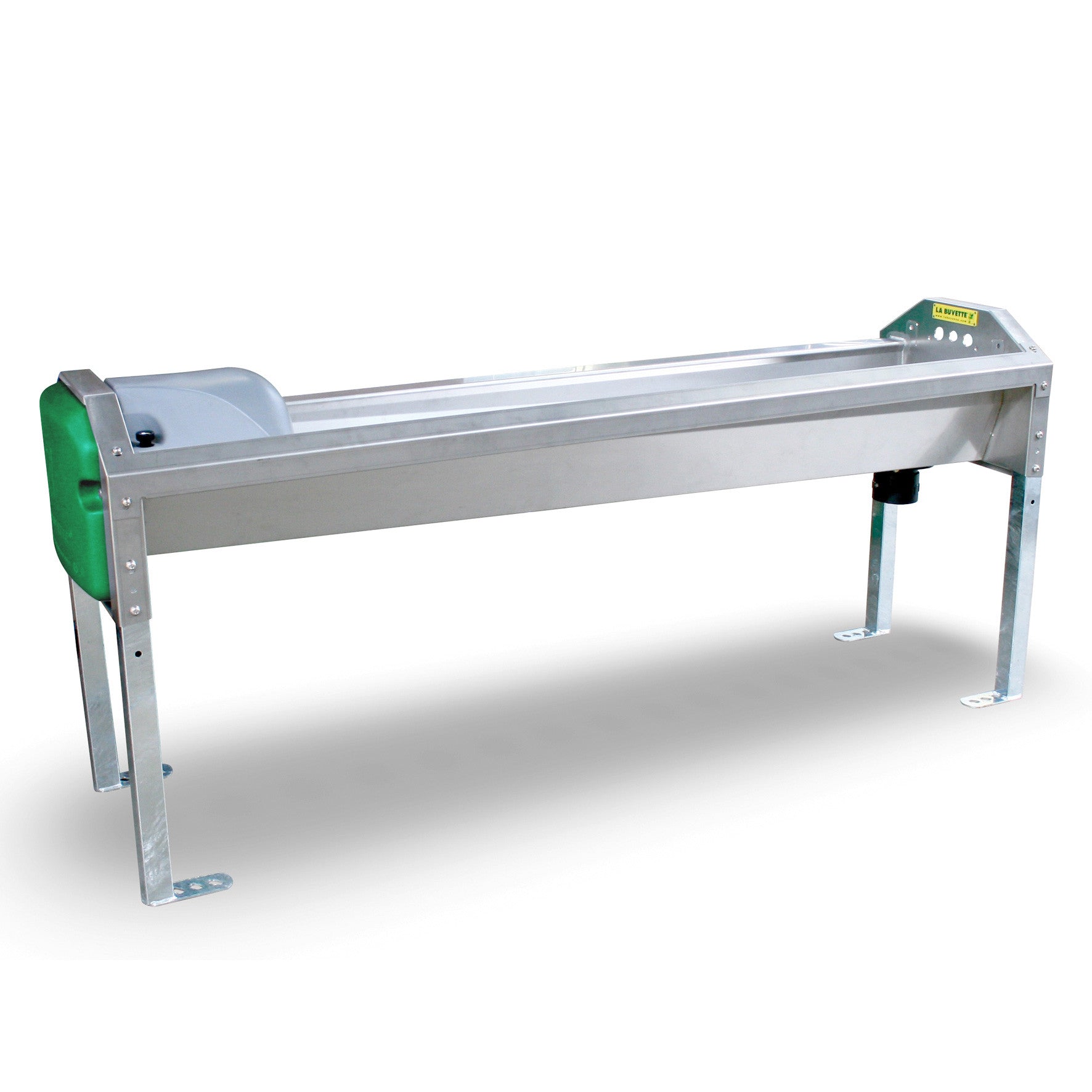

This trough comes ready for wall mounting but can be installed on floor with feet, available here. Several frost protection sets are available.
